VPX250-XD - Versatile and ultra-productive angle line

Choose reliability and increase your productivity

The Vernet Behringer angle line VPX250-XD covers numerous machining operations: marking, drilling, milling and shearing. This highly productive machine combines high work rates and great ease of use. The VPX250-XD is ideally suited for manufacturers of lattice towers and structural steel builders seeking maximum productivity for angles up to 250 x 25 mm.

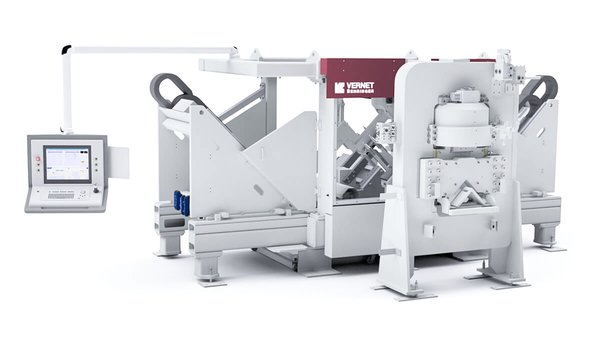

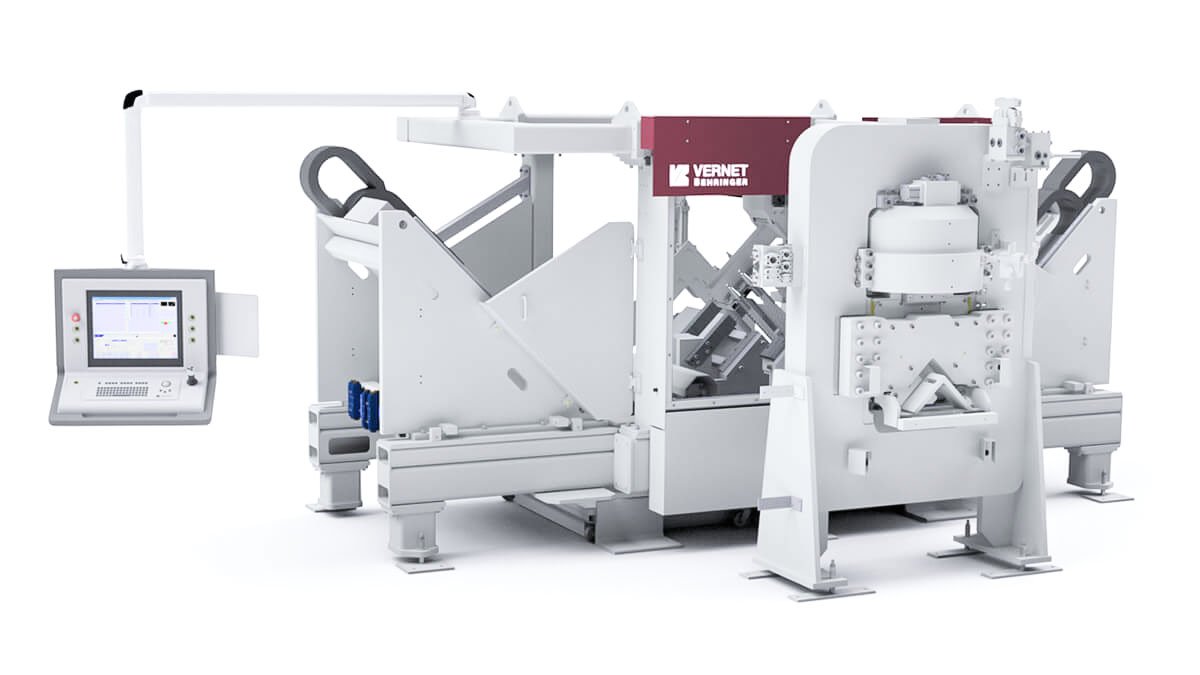

  • Angle line VPX250-XD

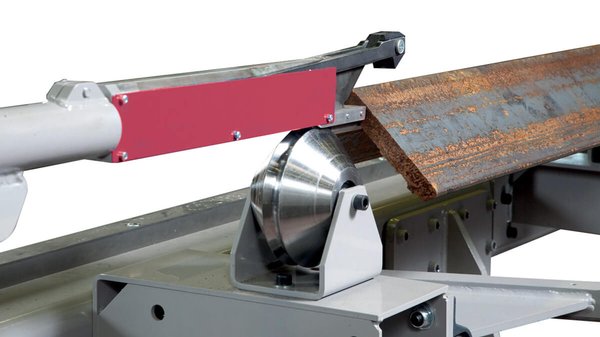

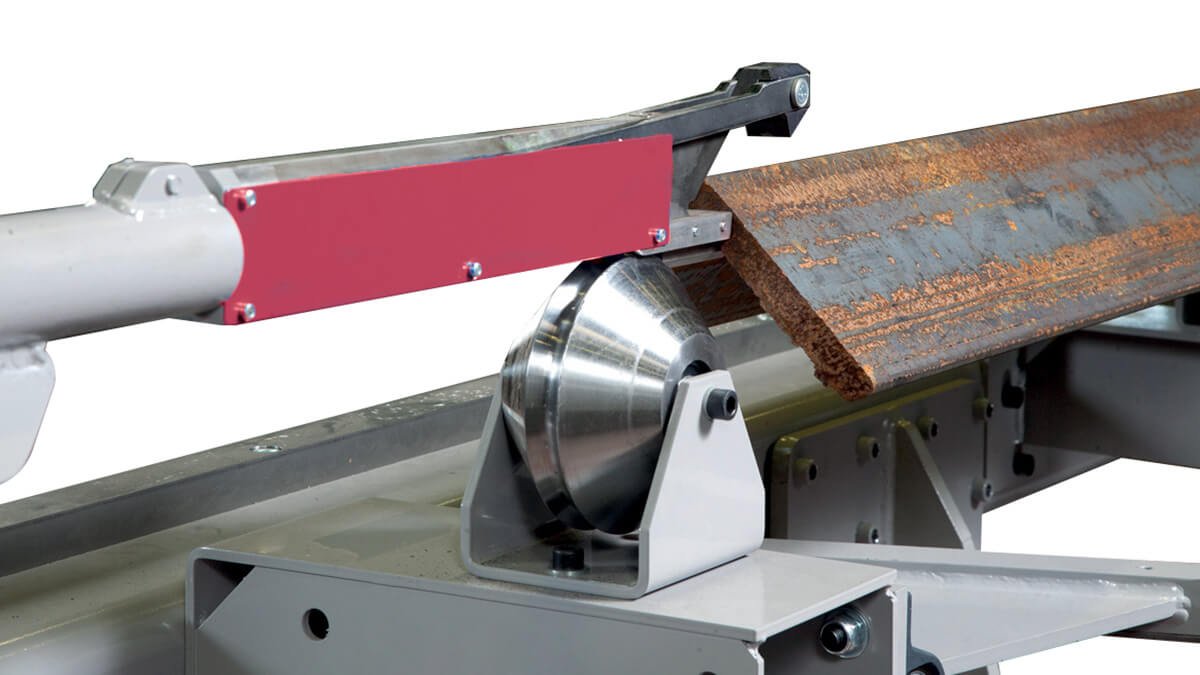

  • CNC carriage and gripper

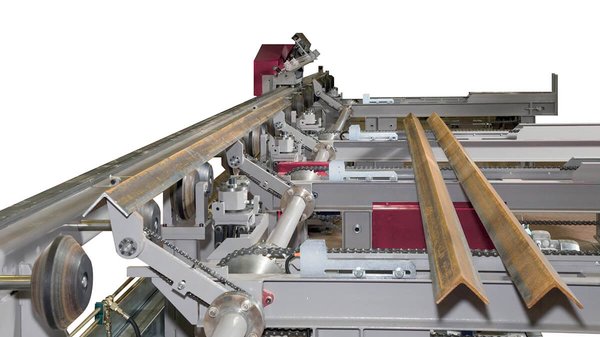

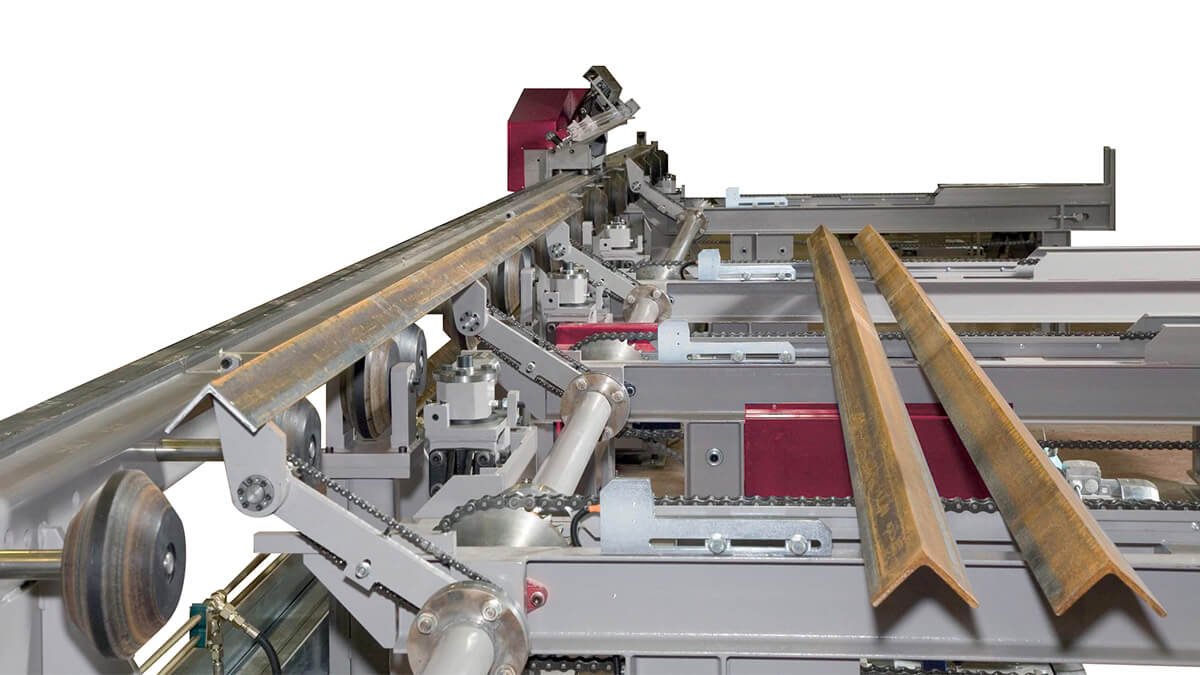

  • Loading chains with rotating arms

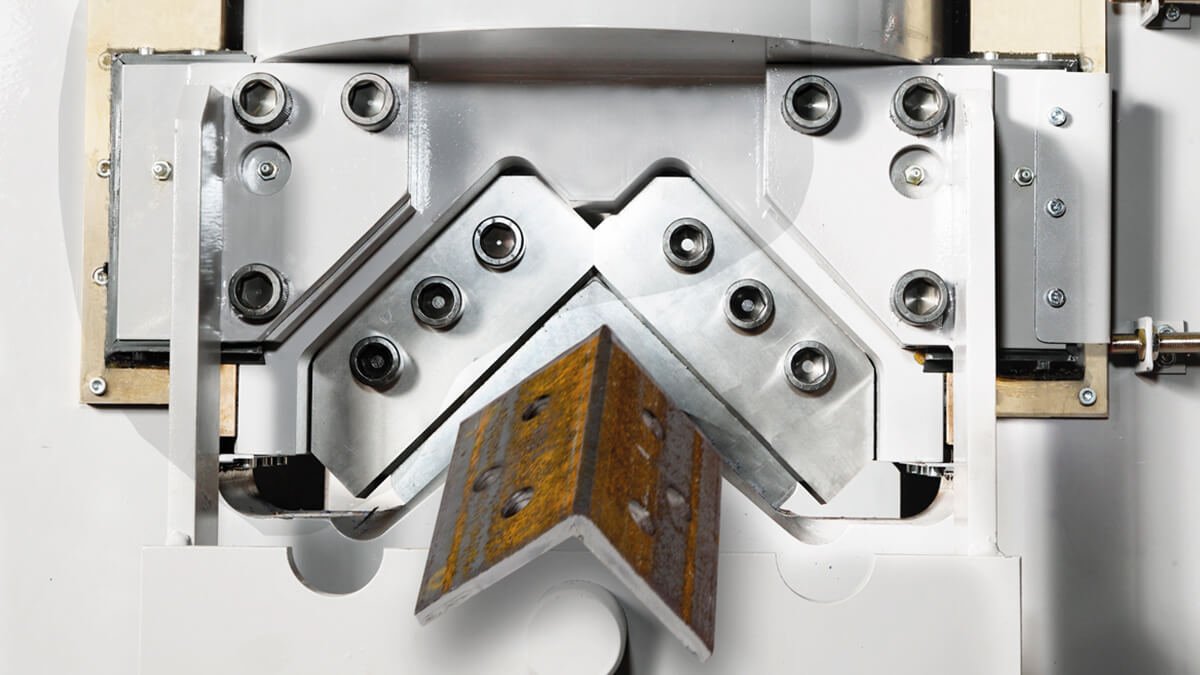

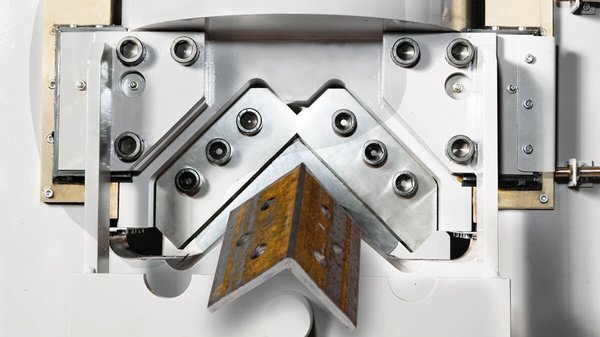

  • High speed single cut shearing unit

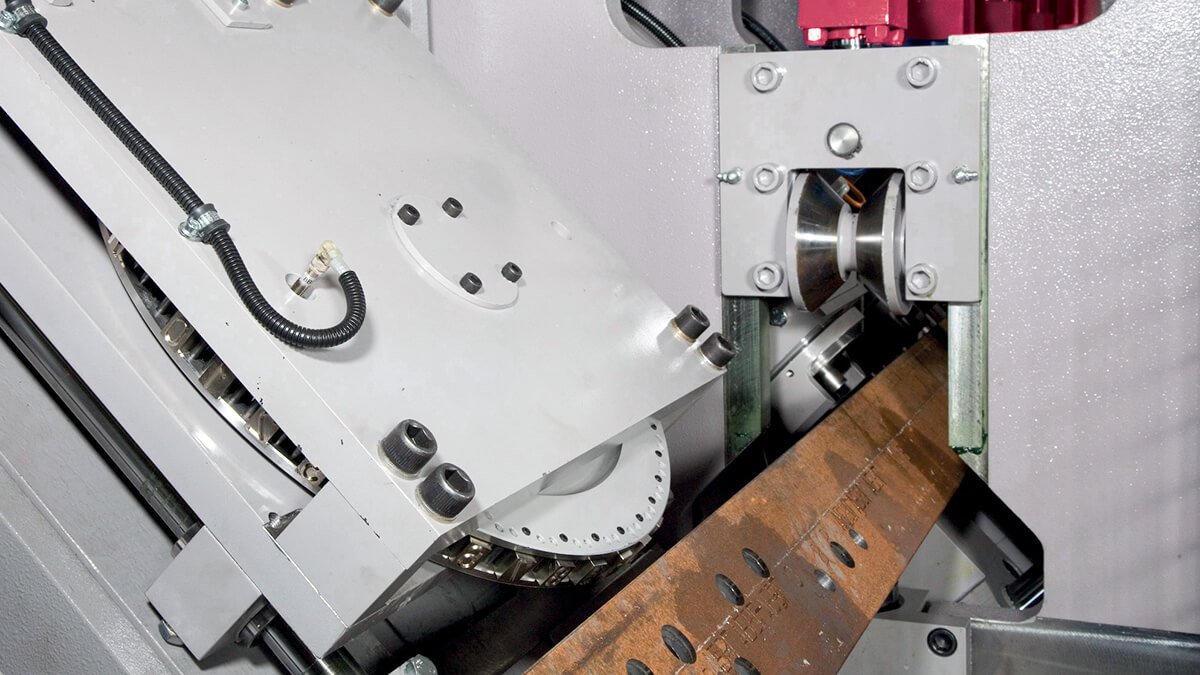

  • Highly versatile disc marking unit

  • High speed marking barrel marking unit

  • Drill units above the angle: easy collection of chips and coolant

Features of the angle line VPX250-XD

Marking

Drilling

Milling

Shearing

  • Unique design on the market
    for angle processing in ^ position, offering the best productivity and low operating costs.

  • 600 tons shear force
    The most powerful shear on the market scores with high cutting speed and low cutting costs.

  • Heavy-duty design
    Designed and manufactured for rough & tough working environments

  • Optimum chip flow
    The drilling and milling spindles are arranged above the angle profiles. Chips and coolant flow downwards. Electrical components are arranged above and thus optimally protected.

  • Highest Productivity
    Heavy duty hydraulics and mechanical design suitable for continuous work af full load.

  • Increase your production capacity
    Independent X-axes on the 2 machining spindles with 500 mm stroke: simultaneous drilling of the 2 flanges even if the holes are off-set within a 500 mm window.

  • Quick tool changing
    thanks to excellent accessibility and ergonomics.

  • User-friendly software suite
    PRONC23D programming software for easy part import and programming with 3D display.

  • Operational everywhere
    The VPX250-XD can be specially adapted for use in particularly high or low temperatures.

  • Optimum accessibility
    Vernet Behringer attaches great importance to the aspect of maintenance and servicing: All the important parts and components are very accessible. The open design offers direct access to all wearing parts, optimizing both maintenance and repairs.

Individual Configuration

The VPX250-XD anlgle line can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data angle line VPX250-XD

Capacity min 50 x 5 mm
Capacity max 250 x 25 mm
Shearing power 600  tons

2-spindle drilling-milling unit with 6-tool changer
& independent X-axis with 500 mm stroke

 standard
Disc marking unit option, 40 positions
Barrel marking unit option, 80 tons, 8 positions, up to 15 characters/position
Feeding system CNC high speed carriage with hydraulic gripper
Storage chains and rotating arms option
Outfeed conveyor with tilting unloading arms standard
Removable element for unloading short parts option
Fully-automatic loading, gripping and unloading operations option
Multi-zone automatic part sorting option
Machine control PRONC23D programming software with 3D part display
