HDS - Compact drilling, marking and milling machine

The all-in-one tool to boost your workshop efficiency

The Vernet Behringer HDS lines are specially designed for drilling, milling and marking rectangular tubes and profiles from 40 x 40 to 1,000 x 300 mm section. They can be combined with a band saw and/or a shearing unit. These lines offer a unique versatility on the market.

  • Compact drilling, marking and milling machine HDS

  • Quick and precise drilling, milling and marking operations

  • HDS with 3 drilling spindles

  • Youtube Logo

    Video HDS

Features of the drilling line HDS

Milling

Marking

Drilling

Scribing

Sawing

  • Maximise the use of your machine
    suitable for processing small angles (especially when using the optional shears), square tubes from 40x40 mm and H-profiles up to 700 mm width and more! Possibility of processing steel profile systems for doors and windows.

  • Avoid manual tasks
    with the milling of slotted holes and free shapes, processing of slots in tubes, flanges notching etc. The CNC controlled clamping system with 150 mm stroke allows optimal clamping of workpieces during machining, guaranteeing optimum tool life and performance.

  • Lowest wear
    The robust design of the machine minimises vibrations and ensures the longest possible tool life and optimum durability of the machine elements. The service life of the machine is significantly increased.

  • Monitor your production
    User-friendly and powerful software suite allowing the optimization of your bar stock, the import and easy programming of your parts, the addition of information on your parts such as coding and slinging indications, manage and optimize your scrap stock. Make your machine communicate with your ERP.

  • Identify your parts and indicate assembly positions
    with the exclusive V-scoring system. It is extremely fast, silent and low in operating costs. The markings are still clearly visible after painting or galvanising.

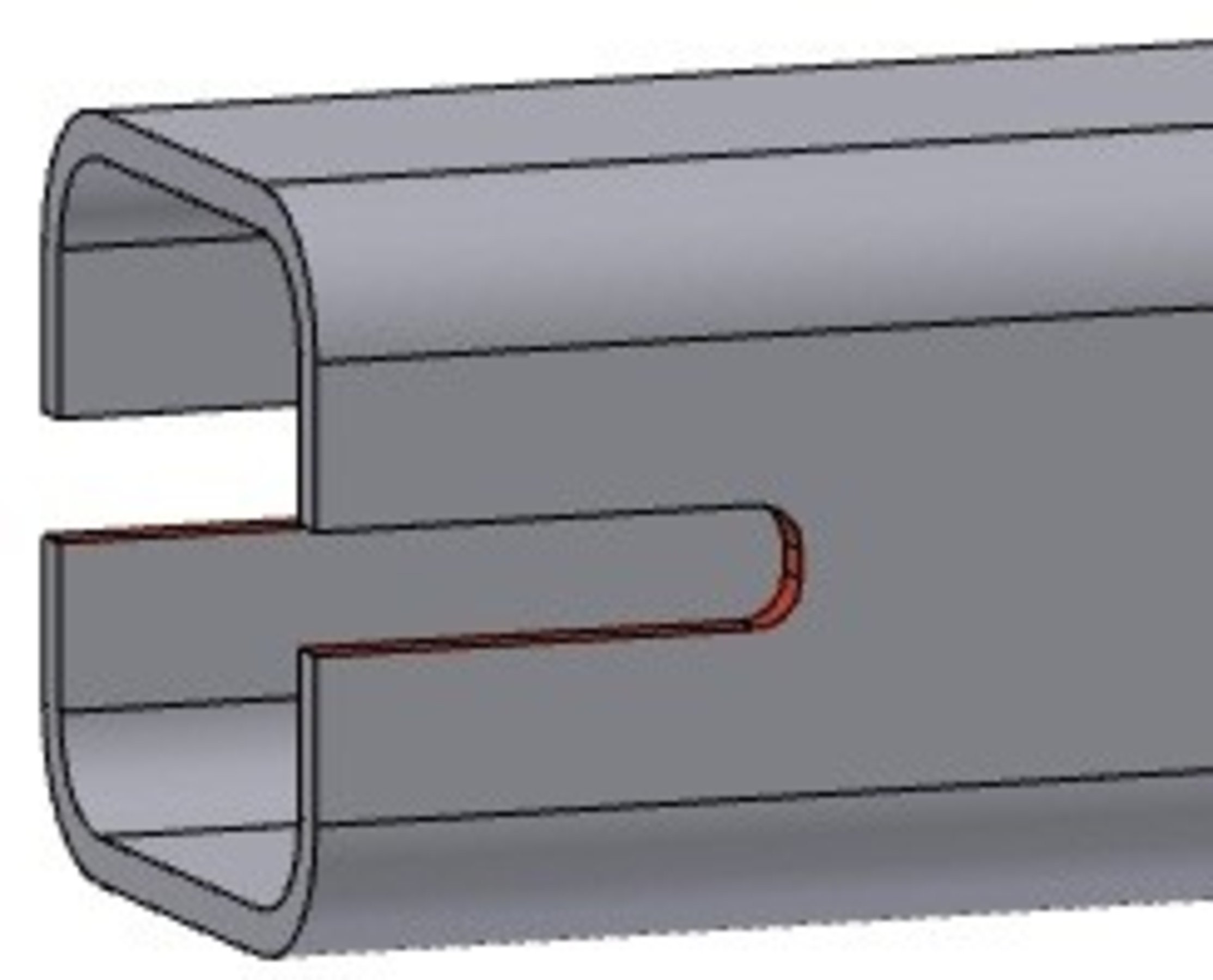

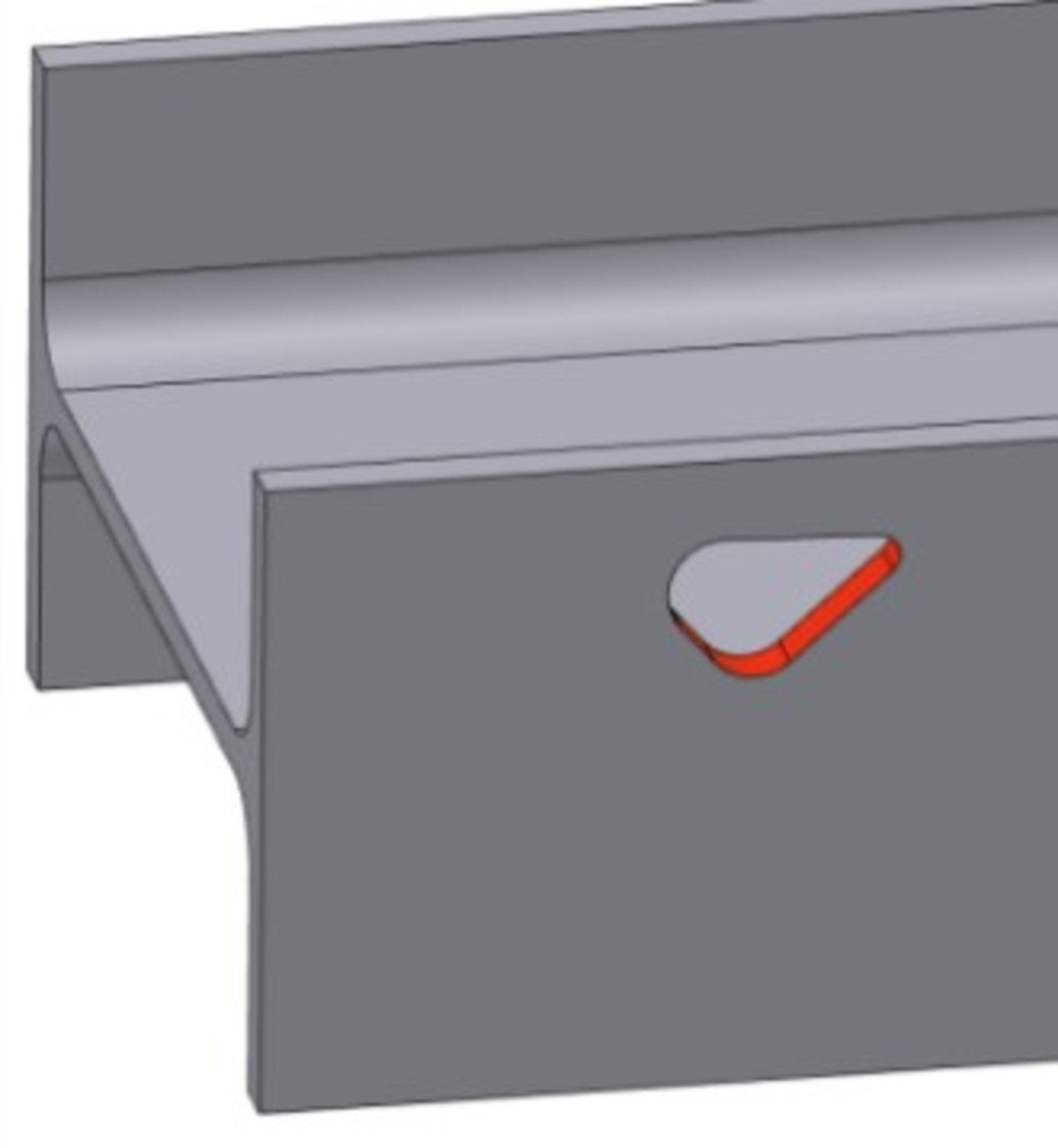

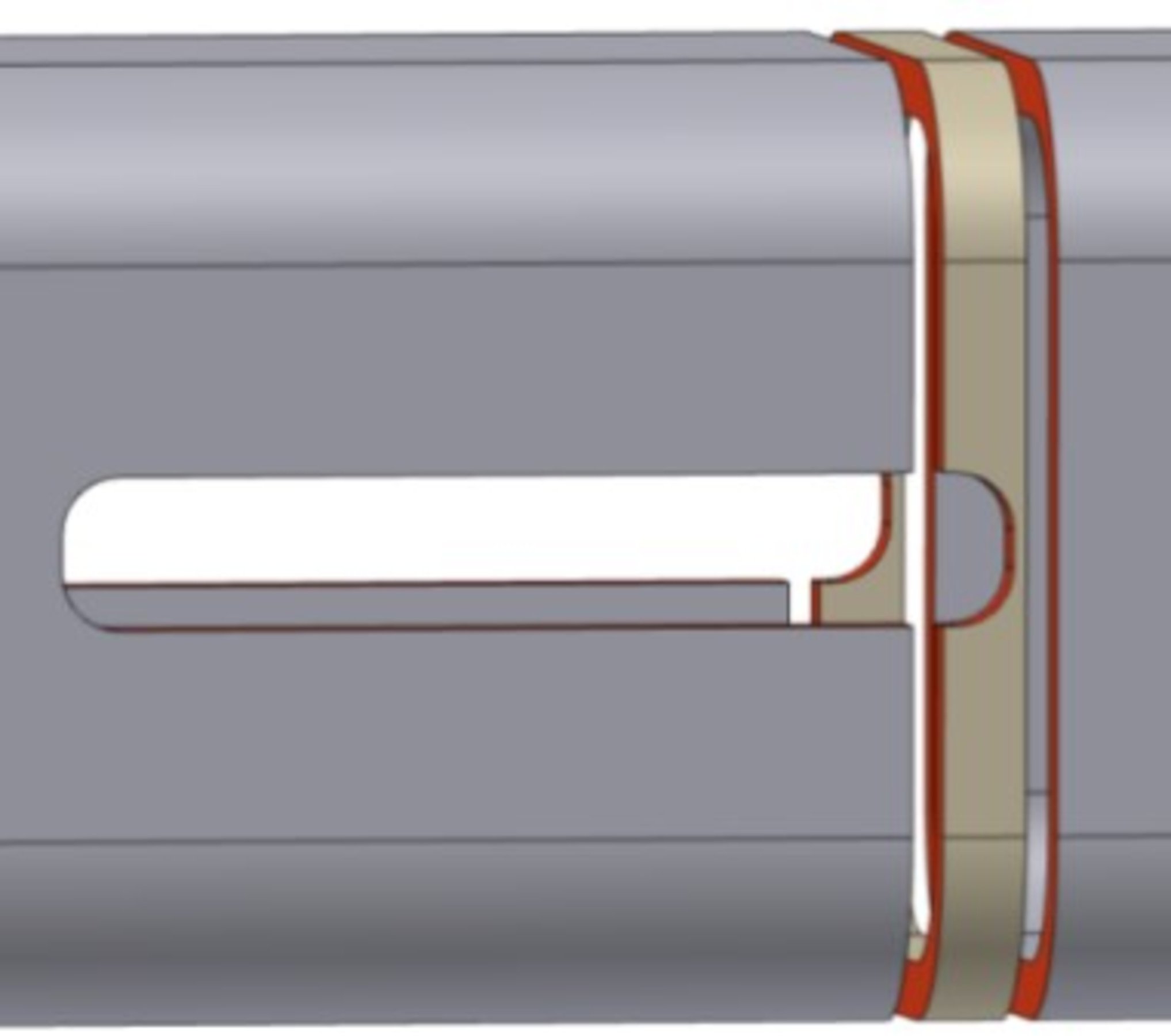

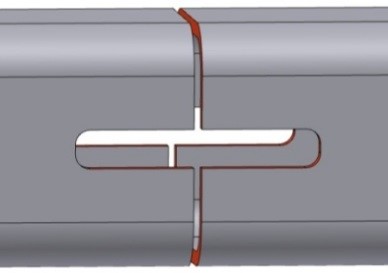

Machining examples

Individual Configuration

The HDS can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical Data HDS

Capacity 1,000 x 300 mm
Materials to be processed H-Profil  U-Profil  L-Profil  Quadrat  Parallel
Raw material length 30 m
Max linear load 500 kg/m
Feeding system CNC high speed carriage with hydraulic gripper
Spindles 3 spindles with 150 mm stroke in X-axis of the clamping system
V-scoring fast scribing V-Scoring 3 sides Option:
Milling Standard
Threading Standard
Tool changer 4 (option: 8) positions
Spindle power (S6-60 %) 11 kW
Spindle speed 160 – 4,000 rpm
Control system PRONC23D user-friendly programming software with 3D part display
